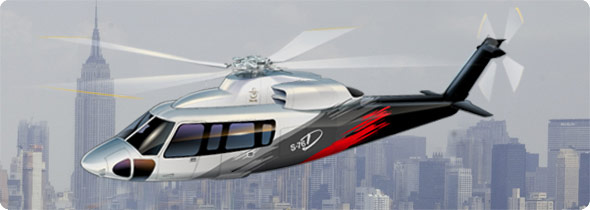

西科斯基S-76D直升機

概述 Overview

The S-76D helicopter is truly the next step in helicopter technology, setting a new standard of excellence that S-76® helicopter operators have come to expect. Power and performance are enhanced by all composite main rotor blades and optimized Pratt & Whitney Canada PW210S engines with dual FADEC controls. Its quiet tail rotor will allow for reduced external acoustic signature and gain acceptance with the communities where it operates. Pilots will appreciate the state-of-the-art integrated Thales cockpit, its increased range and its ability to launch into known icing conditions. Passengers will love the quieter cabin.

特性 Attributes

動力裝置和燃油系統 Powerplant and fuel system

發動機數目 Number of Engines 2
發動機類型 Engine Type Pratt & Whitney Canada PW210S
起飛軸馬力 Take-off Shaft horsepower (5 min) 1,050 shp  783 kw
OEI軸馬力 OEI Shaft horsepower (30 sec) 1,241 shp  925 kw

性能 Performance

最大總重 Maximum Gross Weight 11,700 lbs  5,306 kg
最大巡航速度 Maximum Cruise Speed 155 kts  287 kph
最大航程 Maximum Range - No Reserve 441 nm  818 km
HIGE升限 Hover In Ground Effect Ceiling 9,700 ft  2,957 m
HOGE升限 Hover Out of Ground Effect Ceiling 5,000 ft  1,524 m
單發工作升限 OEI Service Ceiling 7,550 ft  2,301 m
AEO工作升限 AEO Service Ceiling 15,000 ft *  4,572 m *
